2 Core FTTH Drop Cable G657A Singlemode Steel Strength Member With LSZH Jacket

  • 1
  • 2
  • 3

Brand Name : TTI Fiber

Model Number : FTTH

Certification : ISO9001, ROHS, SGS

Place of Origin : China

MOQ : 1000

Price : Negotiable

Supply Ability : 5000 meters per day

Packaging Details : Wooden drum

Fiber type : G652D G657A OM3 OM4

Application : Telecommunication

Jacket : LSZH

cable color : white, black or Customized

Cable material : LSZH PE

Contact Now

China Factory 12 Core FTTH Drop Cable G657A Fiber Optic Cable With LSZH Jacket

Describution:

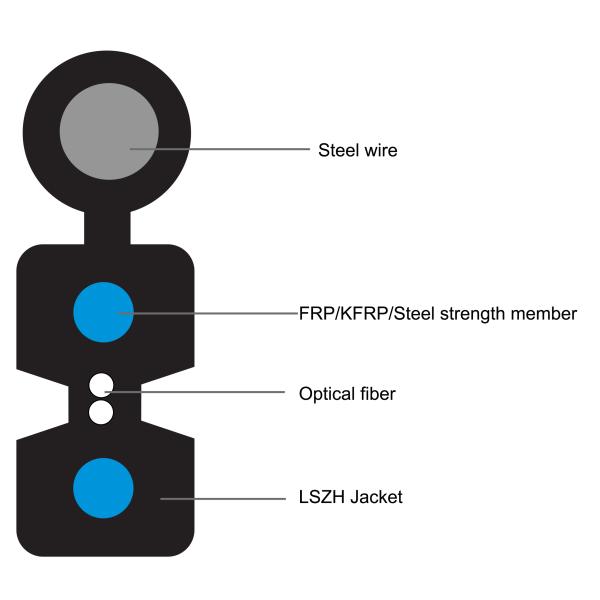

The optical fiber unit is positioned in the centre.Two parallel Fiber Reinforced Plastics(FRP) are placed at the two sides.A steel wire as the additional strenght member is also applied. Then the cable is completed with a black or color LsZH sheath.

Features:

  1. Compliant with: ANSI,Bekkcore,TIA/EIA,IEC Strandards
  2. Simplex and duplex available
  3. With ceramic fettules
  4. PVC&LSZH cable option
  5. Low insertion loss and hight return loss
  6. Excellent repeatability and changeability
  7. Optical performance 100% factory test

Application:

  1. All types of fiber cables with different structures
  2. High performance optical network operating
  3. High speed optical routes in buildings (FTTx)
  4. Application in L band

Cable Construction Parameter:

Fiber Core 1 2 1 4
Cable Dimension(mm) 2.0×5.0 2.0×5.0 2.0×5.3 2.0×5.3
Cable Weight(kg/km) 9 10 11 12

Mechanical & Environmental Performance:

Max Load (N) Long Term 60 60 60 60
Short Term 120 120 120 120
Bending Radius(CM) Dynamic 30
Static 15

Shipping:

  1. Door to Door: by express (such as DHL, UPS, TNT, FedEx etc.)
  2. Airport to Airport: by air
  3. Seaport to Seaport: by sea (our location Shenzhen is a seaport.)

2 Core FTTH Drop Cable G657A Singlemode Steel Strength Member With LSZH Jacket2 Core FTTH Drop Cable G657A Singlemode Steel Strength Member With LSZH Jacket2 Core FTTH Drop Cable G657A Singlemode Steel Strength Member With LSZH Jacket
